Adding a target to your chart

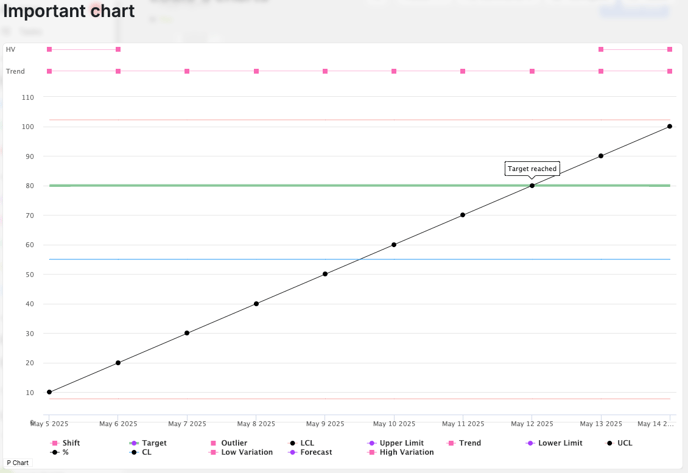

A target in a Simana chart is an addition you can add which shows a goal or marker for what is considered noteworthy for your data. It can help compare actual performance against an expected target, or show how high or low values should be.

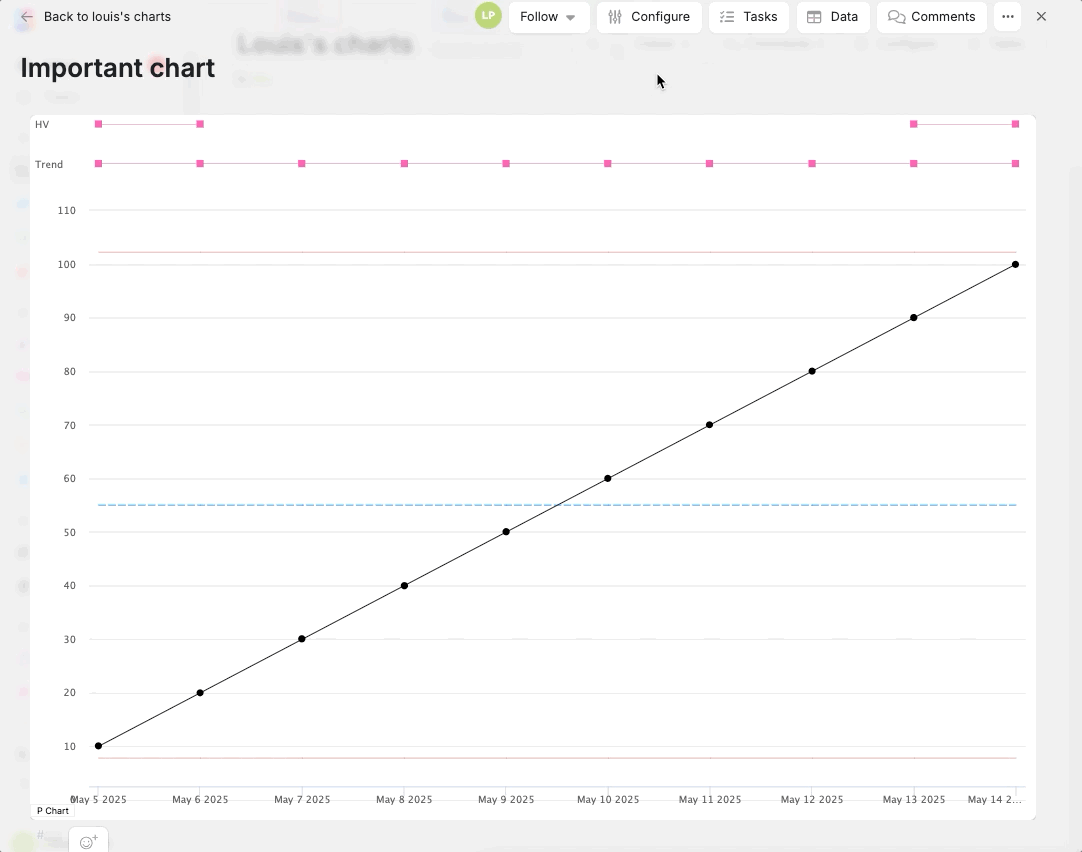

How to enable a target on a chart

EnableTarget

  1. Select your chart to enlarge it.

  2. Select Configure from the top right and then select Appearance on the pop-out.

  3. Scroll down on the Configure card pop-out until you see the Targets header. Select the toggle next to Enable Targets.

  4. Select Data from the top right and then select Configure on the pop-out.

  5. Scroll down on the Configure Table pop-out until you see the Targets header. Select the toggle next to Enable Targets.

  6. Select + Add target.

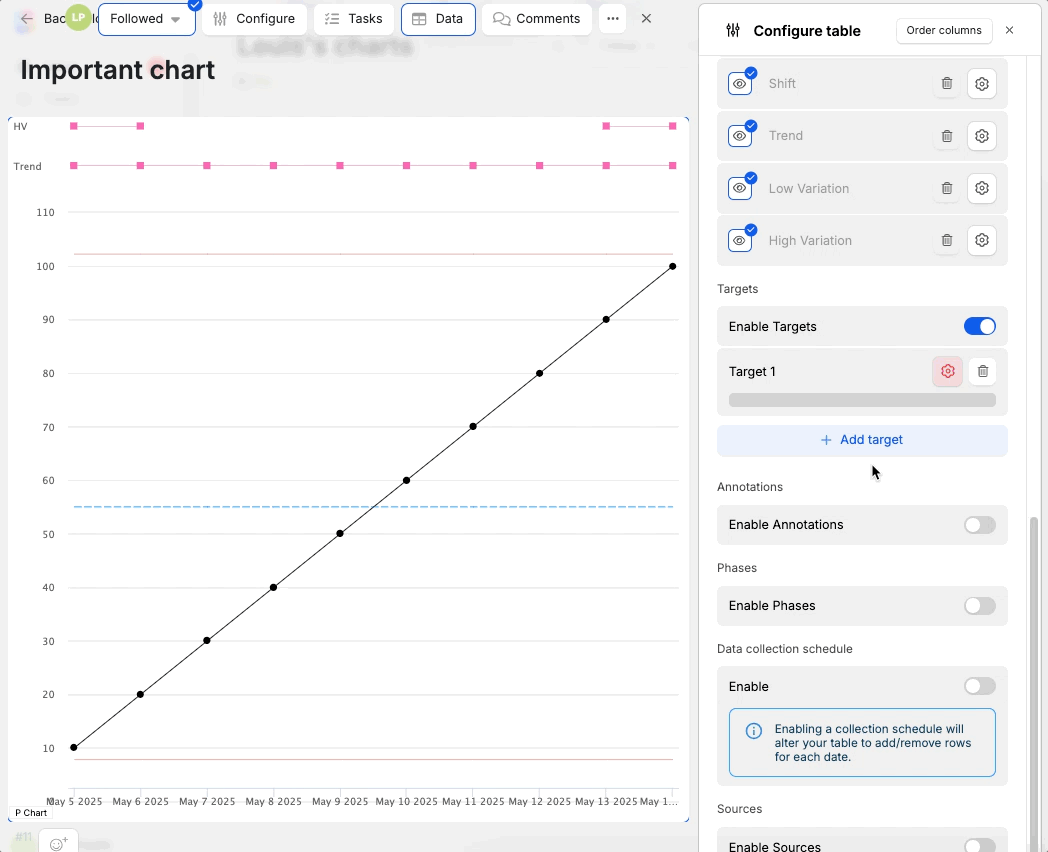

How to configure your target on a chart

ConfigureTarget

  1. Select the cog icon on your target to configure it.
    1. Compare column - Choose a value to aim your target at - e.g. count or percentage.
    2. Type - Define the target's trigger parameters  - e.g. do you want your data to exceed the target above or below the target value. Or do you want your data to stay within the target's upper and lower limits?
    3. Target value - the numeric value you want to monitor your data against.
    4. Use timeframe - Define a start and end date you want your target to monitor your data within.
    5. Show on track* - Optional timeframe toggle which will display a Succeeded or Failed label on your target.

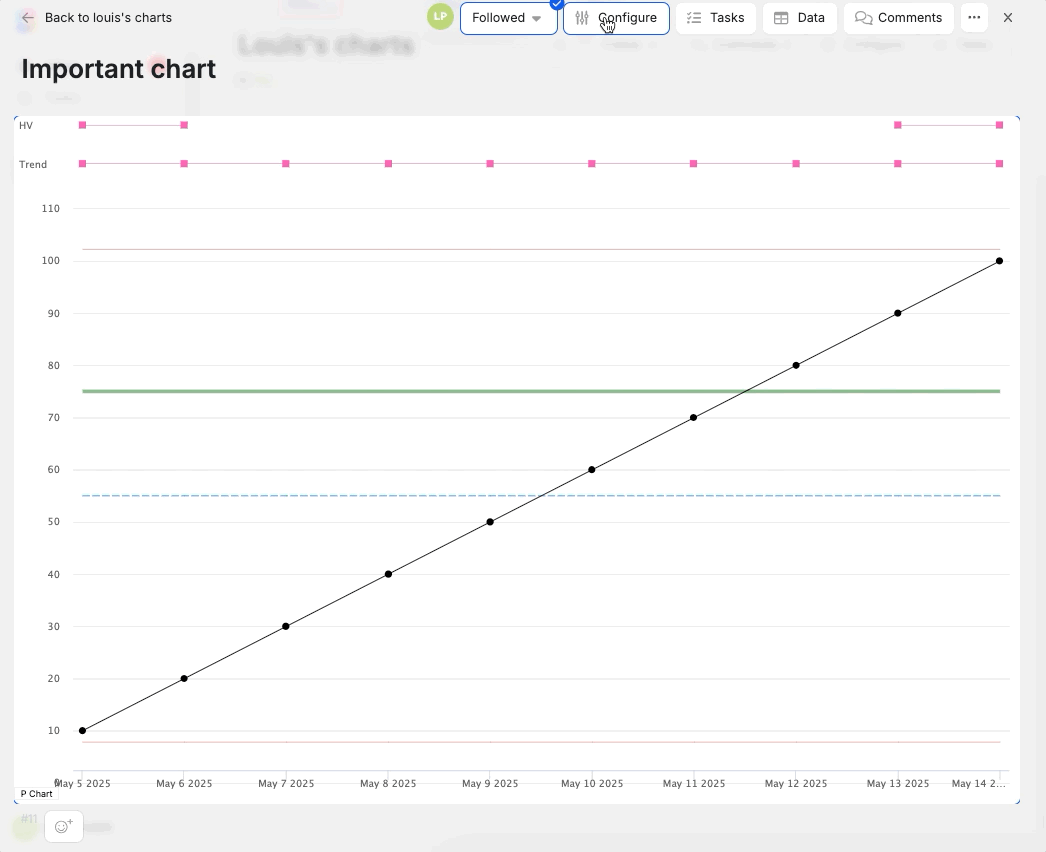

How to configure the appearance of your target on a chart

ConfigureTarget2

  1. Select your chart to enlarge it.

  2. Select Configure from the top right and then select Appearance on the pop-out.

  3. Scroll down on the Configure card pop-out until you see the Targets header. Select the cog icon next to Target.

    1. Series name* - Enter a unique name for your target, which will be referenced on the chart Legend and data points.
    2. Line - Choose the style and colour of the target.
    3. Marker - Choose whether or not your target includes markers. The colour and style of markers can be configured as well.

*To help avoid confusion, consider using more descriptive labels to clarify how a target should be interpreted. For instance, instead of simply using the word “target,” you might use terms like “maximum” or “upper limit” to convey intent more precisely. You can also expand on the label to provide additional context—for example, “Target: below 90 days” makes the expectation immediately clear.
